R2R Inspection System
Fraunhofer Institute for Organic Electronics, Elec
[INSPECTION] Optical inspection / R2R
[R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Technology concept development (TRL 2) [R&D PROJECT / TECHNO TRANSFER / CONTRACT RESEARCH] Specific R&D contract research [PROVIDER OF TECH INFRASTRUCTURE] Access to Lab facilities and services [TESTING AND VALIDATION] Performance Benchmarking analysis [TESTING AND VALIDATION] Product qualification
Electronics & Components Flexible Displays OLED Lighting Organic Photovoltaics Other
Transport/Automotive Packaging/Logistics Ligthing Health Consumer electronics

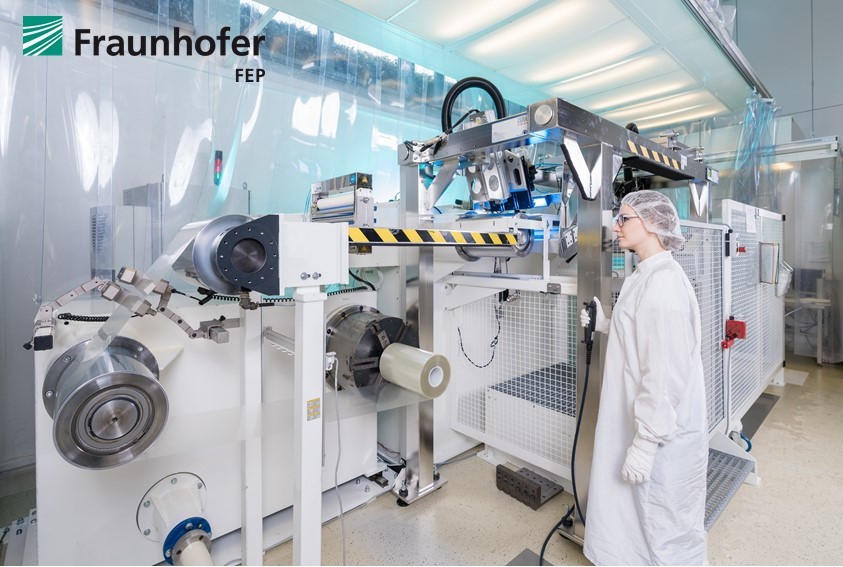

The Fraunhofer FEP offers its clients the development of processes and technologies for efficient and cost-effective fabrication of innovative organic electronic solutions in Roll-to-Roll (R2R). The inspection system consists of a winding unit with a CCD camera bank for pixel resolution down to 14μm (100% web inspection) and a modular, moveable optical microscope with a point resolution down to 1μm.

- Contactless winding of the substrate under clean room class ISO6

- 100% inspection by means of line scan cameras (pixel resolution 14μm)

- Attached moveable optical microscope (point resolution 1μm)

- Rewind mode for defect analysis detected by the line scan cameras

- Automatic statistical analysis of recorded optical images by spot counting

- Integrated confocal microscopy for substrate and device topography analysis
